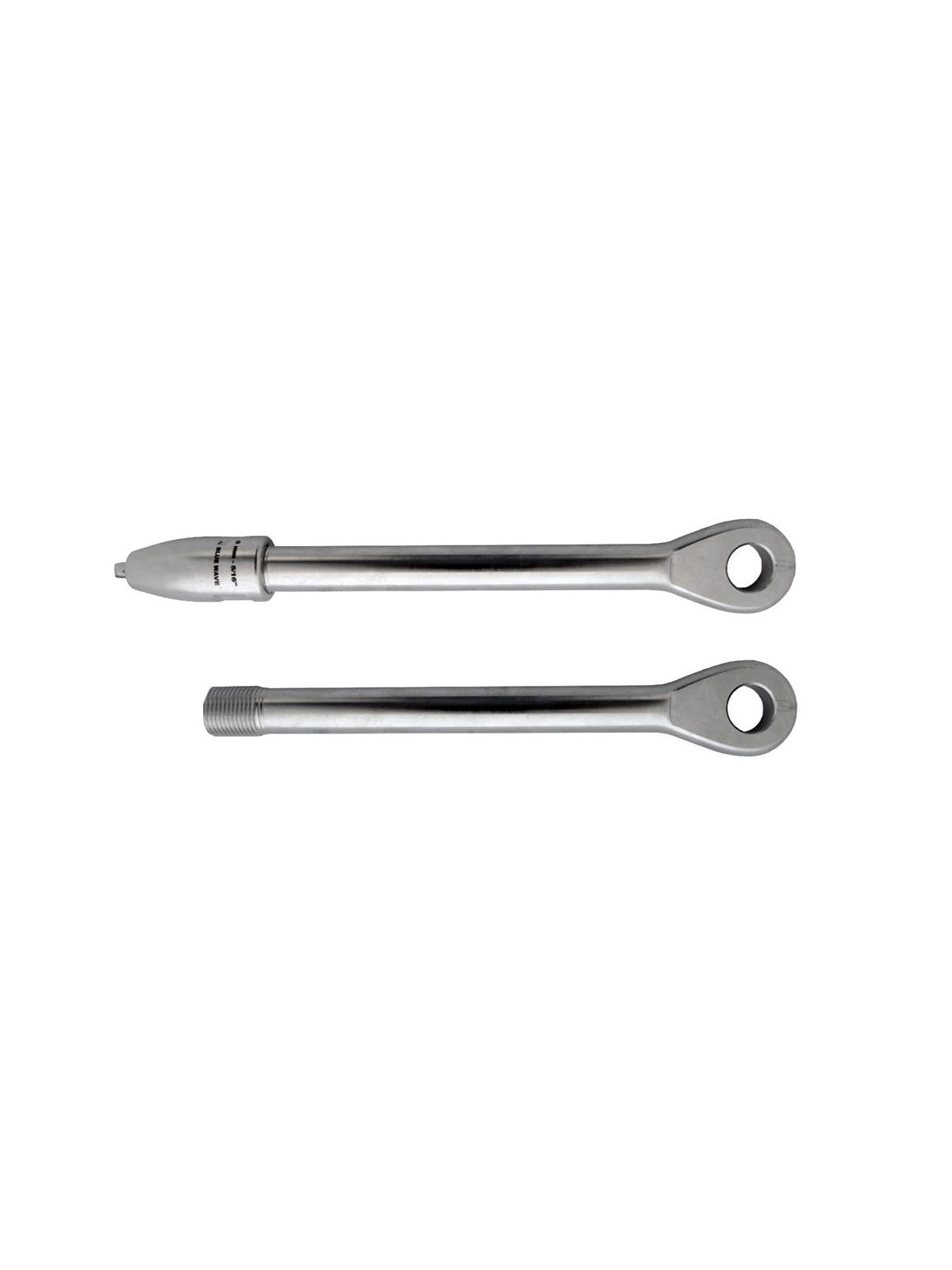

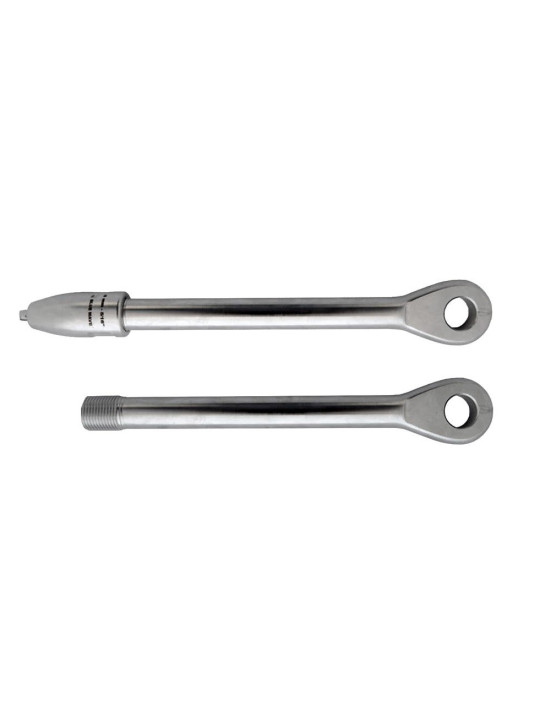

Oeil long "NORSEMAN"
À partir de
59,32 €
TTC
SC821306L
Terminaison montage manuel câble d'un coté, œil de l'autre. Permet l'adaptation et le montage sur place sans autre outil que des clés de serrage .
Très utile pour récupérer un hauban coupé trop court.
La société NORSEMAN a stoppé récemment sa production, nous avons développé ce produit similaire.
Utilisable avec du câble inox (1x19) ( pour câble DYFORM ou COMPACTED: sur demande).
Idéal en pièce de secours sur un bateau (grand voyage).

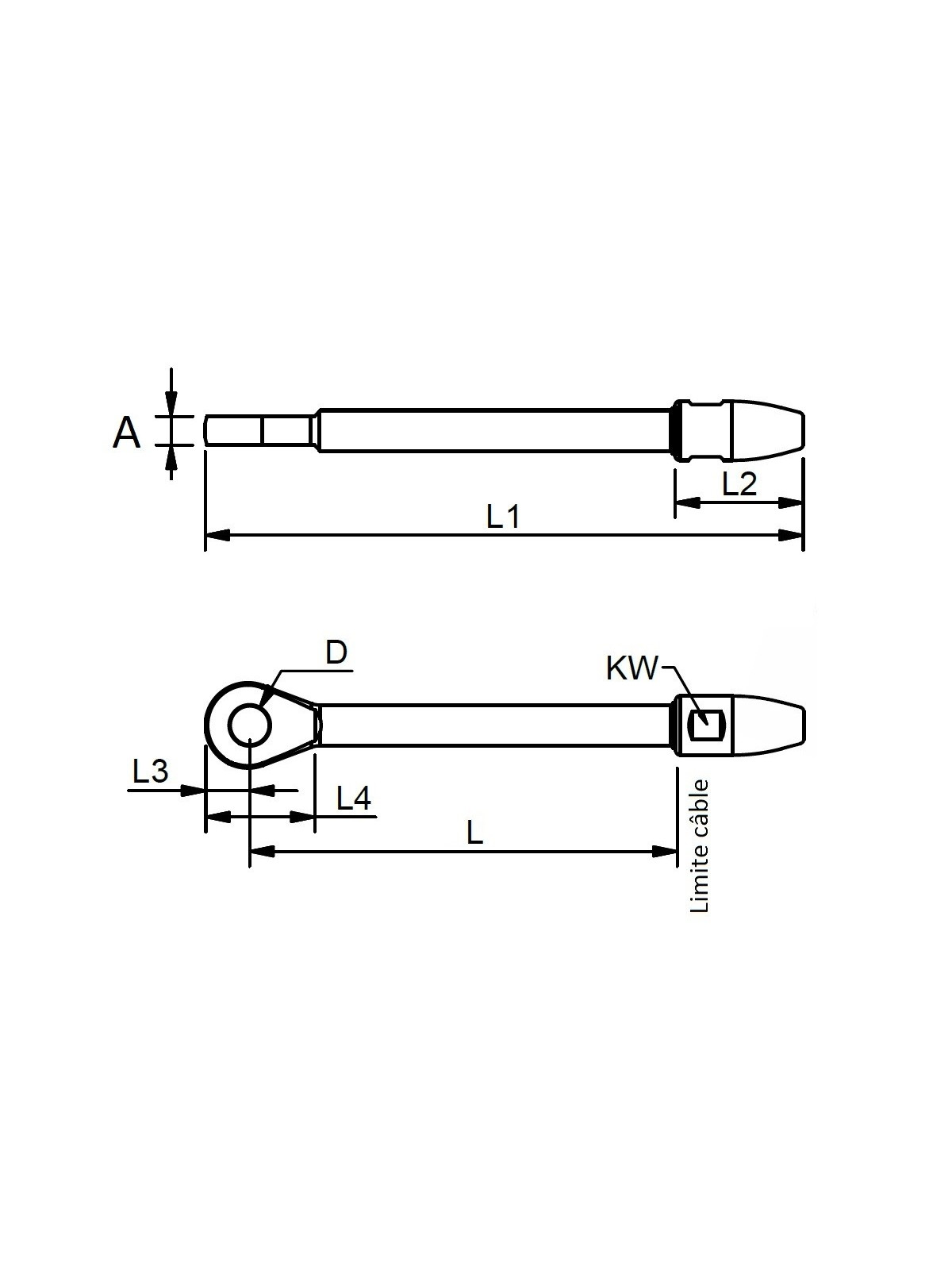

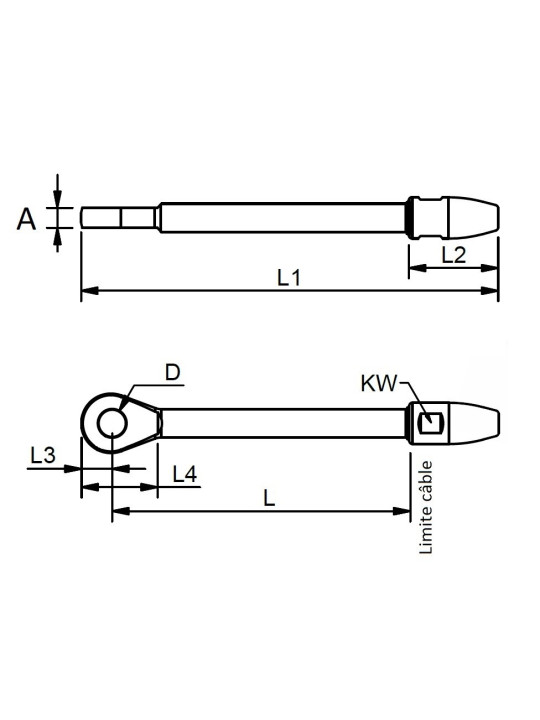

Inox 316. Principe de montage
Eye terminal NORSEMAN
NORSEMAN terminal, famed worldwide for decades! Made from 1.4401 stainless steel.
The terminal dimensions are so large that it has a higher breaking load than the matching wire.
These terminals can be attached to the wire onboard, without milling or pressing.
Intended for 1 x 19 stainless steel wires and DYFORM. When the cone is replaced, the terminal can be reused.
The standard design is usable for 1 x 19 wire. For 7 x 19 or 7 x 7 constructions, extra cones must be ordered!
BLUE WAVE, a manufacturer of high quality stainless steel rigging components, has developed the well known NORSEMAN terminals under the new brandname SWAGELESS TERMINAL.
These high precision terminals, manufactured in Denmark from stainless steel 1.4404 (AISI 316L), are stronger dimensioned than the breaking load of the strongest wire fitting for them. The newly developed cone with crown ring enables the very simple and safe fitting to the wire with on-board means, that is without milling and pressing. There is no need anymore for sealants when fitting the wire and cones are reusable if undamaged. It is necessary to order special cones for wire constructions 7 x 19 und 7 x 7.
SC821306L
